Rexroth A2FE90 AXIAL-PISTON MOTOR 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 250, 355 cm³/rev for truck drive
The A2FE Rexroth-type hydraulic motor is a high-pressure, fixed-displacement plug-in axial piston motor designed for compact, heavy-duty applications like track drives. It features a bent-axis design and is available in displacements ranging from 28 to 355 cc/rev, with pressures up to 450 bar.
| Size |
28 |
32 |
107 |
125 |
160 |
180 |
250 |
355 |
| Displacement geometric, per revolution |
Vg |
cm3 |
28.1 |
32 |
106.7 |
125 |
160.4 |
180 |
250 |
355 |
| Nominal pressure |
Pnom |
bar |
400 |
400 |
400 |
400 |
400 |
400 |
350 |
350 |
| Maximum pressure |
Pmax |
bar |
450 |
450 |
450 |
450 |
450 |
450 |
400 |
400 |
| Maximum speed 1) |
nnom |
rpm |
6300 |
6300 |
4000 |
4000 |
3600 |
3600 |
2700 |
2240 |
| nmax 2) |
rpm |
6900 |
6900 |
4400 |
4400 |
4000 |
4000 |
|
|
| Inlet flow 3) at nnom |
qv |
l/min |
177 |
202 |
427 |
500 |
577 |
648 |
675 |
795 |
| Torque 4) at pnom |
M |
Nm |
179 |
204 |
679 |
796 |
1021 |
1146 |
1393 |
1978 |
| Rotary stiffness |
c |
kNm/
rad |
2.93 |
3.12 |
11.2 |
11.9 |
17.4 |
18.2 |
73.1 |
96.1 |
| Moment of inertia for rotary group |
JTW |
kg.m2 |
0.0012 |
0.0012 |
0.0116 |
0.0116 |
0.022 |
0.022 |
0.061 |
0.102 |
| Maximum angular acceleration |
α |
rad/s2 |
6500 |
6500 |
4500 |
4500 |
3500 |
3500 |
10000 |
8300 |
| Case volume |
V |
I |
0.2 |
0.2 |
0.8 |
0.8 |
1.1 |
1.1 |
2.5 |
3.5 |
| Weight (approx.) |
m |
kg |
10.5 |
10.5 |
34 |
36 |
47 |
48 |
82 |
110 |
Model:
R902137649 AXIAL-PISTON MOTOR A2FE90/61W-VAL100
If you need any A2FE, or other modes of the piston pumps, feel free to check with us.
Don't forgot share the nameplate photo and complete pump or motor model.
About Elephant Fluid Power, as direct factory of the Rexroth hydraulic pumps, for the A2FE Motor we provide:
- Same design as Rexroth
- Same performance
- Same internal spare parts
- Real warranty

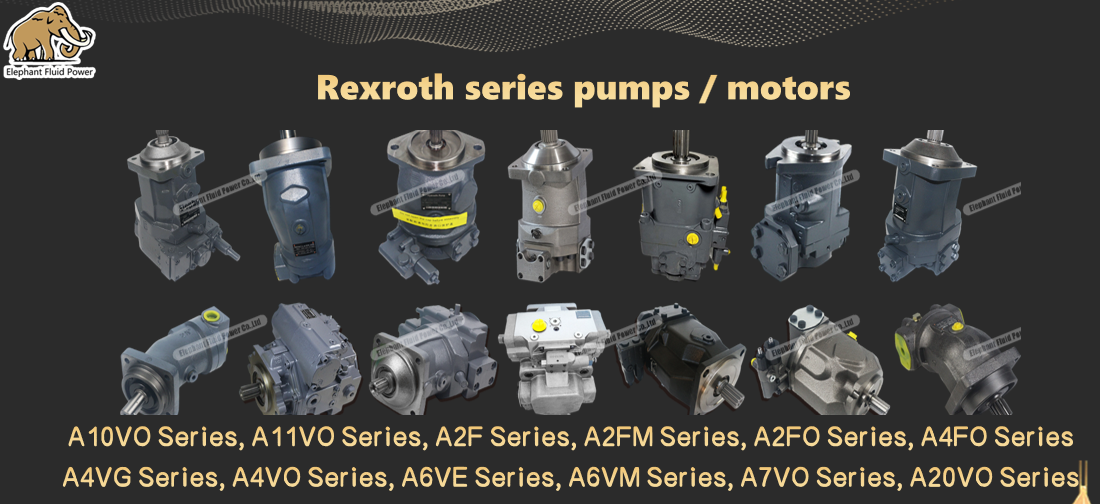

We also supply other Rexroth OEM Pumps.
| A2F |
A2FE |
A4VG |
A4VSO |
A7VM |
A10VSO |
A4FM |
| A2FO |
A4FO |
A4VTG |
A6VM |
A8VO |
A11VO |
A20VL190 |
About Elephant Fluid power:
Mastering Power, Steadfast as an Elephant – Elephant Fluid, Your Reliable Global Hydraulic Power Partner Elephant Fluid is a foreign trade enterprise specializing in the R&D, production, and sales of core hydraulic power components. Since its establishment, we have been deeply involved in the hydraulic field, with our main products covering high-performance hydraulic pumps, hydraulic motors, and complete hydraulic system solutions. We deeply understand that stable and reliable hydraulic power is the cornerstone of efficient operation in heavy machinery, engineering equipment, industrial automation, and marine engineering. Therefore, Elephant Fluid adheres to the core philosophy of "Mastering Power with Elegance," infusing cutting-edge technology and exquisite craftsmanship into every product. Our hydraulic pumps and motors are renowned for their powerful output, superior efficiency, and extended service life, maintaining stable performance even under the most demanding operating conditions, as powerful and composed as an elephant. With a rigorous quality control system, competitive pricing, and an agile global supply chain, Elephant Fluid's products have been exported to many countries and regions worldwide, including Europe, North America, Southeast Asia, and the Middle East, winning the trust and long-term cooperation of numerous international customers. We are not only a product supplier, but also a trustworthy partner for our customers. Elephant Fluid is committed to providing continuous power support to global customers through professional technical support, rapid after-sales response, and customized services, helping your equipment and business to achieve steady and long-term development.
More A2FE90 Models we supply.
| REXROTH MNR |
COMPLETE MODEL |
| R902004370 |
A2FE90/61W-NAL181-K |
| R909611015 |
A2FE90/61W-NAL190 |
| R909610137 |
A2FE90/61W-NAL190 |
| R909610138 |
A2FE90/61W-NAL192-K |
| R909605713 |
A2FE90/61W-NAL200D |
| R909605714 |
A2FE90/61W-NAL200D-K |
| R902009974 |
A2FE90/61W-NAL300 |
| R902014440 |
A2FE90/61W-NAL300-J |
| R909603786 |
A2FE90/61W-NZL181-K |
| R909448518 |
A2FE90/61W-NZL181-K |
| R909603838 |
A2FE90/61W-NZL181-K |
| R909441172 |
A2FE90/61W-NZL196 |
| R909603835 |
A2FE90/61W-PAL100-S |
| R909446565 |
A2FE90/61W-PAL100-S |
| R902225628 |
A2FE90/61W-PAL188 |
| R902248467 |
A2FE90/61W-VAL020 |
| R902090476 |
A2FE90/61W-VAL020-S |
| R902138109 |
A2FE90/61W-VAL020-S |
| R902160983 |
A2FE90/61W-VAL020-S |
| R902138108 |
A2FE90/61W-VAL020-S |
| R902160897 |
A2FE90/61W-VAL020F |
| R902101625 |
A2FE90/61W-VAL020F-S |
| R902101627 |
A2FE90/61W-VAL020F-SK |
| R902018421 |
A2FE90/61W-VAL027 |
| R902165899 |
A2FE90/61W-VAL027 |
| R902073553 |
A2FE90/61W-VAL027-S |
| R909437384 |
A2FE90/61W-VAL027-S |
| R902165023 |
A2FE90/61W-VAL027-S |
| R902137519 |
A2FE90/61W-VAL027-S |
| R902161461 |
A2FE90/61W-VAL027-S |
| R902150298 |
A2FE90/61W-VAL029V |
| R909416951 |
A2FE90/61W-VAL100 |
| R902137841 |
A2FE90/61W-VAL100 |
| R902155644 |
A2FE90/61W-VAL100 |
| R902150333 |
A2FE90/61W-VAL100 |
| R902257789 |
A2FE90/61W-VAL100 |
| R902161489 |
A2FE90/61W-VAL100 |
| R902137836 |
A2FE90/61W-VAL100 |
| R902137837 |
A2FE90/61W-VAL100 |
| R902248213 |
A2FE90/61W-VAL100 |
| R902137832 |
A2FE90/61W-VAL100 |
| R902137840 |
A2FE90/61W-VAL100 |
| R902137828 |
A2FE90/61W-VAL100 |
| R902137829 |
A2FE90/61W-VAL100 |
| R902137830 |
A2FE90/61W-VAL100 |
| R902223337 |
A2FE90/61W-VAL100 |
| R902137831 |
A2FE90/61W-VAL100 |
| R902137649 |
A2FE90/61W-VAL100 |
| R902137838 |
A2FE90/61W-VAL100 |
| R902165022 |
A2FE90/61W-VAL100 |
| R902161242 |
A2FE90/61W-VAL100 |
| R902220947 |
A2FE90/61W-VAL100 |
| R902073622 |
A2FE90/61W-VAL100-S |
| R902138195 |
A2FE90/61W-VAL100-S |
| R902247065 |
A2FE90/61W-VAL100-S |
| R902233795 |
A2FE90/61W-VAL100-S |
| R902225781 |
A2FE90/61W-VAL100-S |
| R902207114 |
A2FE90/61W-VAL100F |
| R909442542 |
A2FE90/61W-VAL106 |
| R902138049 |
A2FE90/61W-VAL106 |
| R902155643 |
A2FE90/61W-VAL106 |
| R902138047 |
A2FE90/61W-VAL106 |
| R909446074 |
A2FE90/61W-VAL106-S |
| R902161284 |
A2FE90/61W-VAL106-S |
| R992001640 |
A2FE90/61W-VAL106-S |
| R909438501 |
A2FE90/61W-VAL180 |
| R902035123 |
A2FE90/61W-VAL180-S |
| R902004483 |
A2FE90/61W-VAL180J |
| R902161093 |
A2FE90/61W-VAL181 |
| R902155049 |
A2FE90/61W-VAL181 |
| R902165314 |
A2FE90/61W-VAL181 |
| R902170144 |
A2FE90/61W-VAL181 |
| R902165099 |
A2FE90/61W-VAL181 |
| R902198142 |
A2FE90/61W-VAL181 |
| R902193106 |
A2FE90/61W-VAL181 |
| R902165273 |
A2FE90/61W-VAL181 |
| R902193812 |
A2FE90/61W-VAL181 |
| R902155789 |
A2FE90/61W-VAL181 |
| R902165576 |
A2FE90/61W-VAL181 |
| R902155746 |
A2FE90/61W-VAL181 |
| R902165011 |
A2FE90/61W-VAL181 |
| R902203496 |
A2FE90/61W-VAL181 |
| R902215071 |
A2FE90/61W-VAL181 |
| R902067665 |
A2FE90/61W-VAL181-K |
| R902060294 |
A2FE90/61W-VAL181-K |
| R902088963 |
A2FE90/61W-VAL181-K |
| R902100039 |
A2FE90/61W-VAL181-K |
| R902099023 |
A2FE90/61W-VAL181-K |
| R909604874 |
A2FE90/61W-VAL181-K |
| R902063895 |
A2FE90/61W-VAL181-K |
| R902107584 |
A2FE90/61W-VAL181-K |
| R902080550 |
A2FE90/61W-VAL181-K |
| R902115582 |
A2FE90/61W-VAL181-K |
| R902126845 |
A2FE90/61W-VAL181-K |
| R902117997 |
A2FE90/61W-VAL181-K |
| R902035125 |
A2FE90/61W-VAL181-KS |
| R902201554 |
A2FE90/61W-VAL181-S |
| R902050543 |
A2FE90/61W-VAL181-SK |
| R902101262 |
A2FE90/61W-VAL181-SK |
| R992000072 |
A2FE90/61W-VAL181-SK |
| R902204882 |
A2FE90/61W-VAL181F |
| R902004484 |
A2FE90/61W-VAL181J-K |
| R902165745 |
A2FE90/61W-VAL188 |
| R902248105 |
A2FE90/61W-VAL188 |
| R902165983 |
A2FE90/61W-VAL188 |
| R902223317 |
A2FE90/61W-VAL188 |
| R902115951 |
A2FE90/61W-VAL190FJ |
| R902004493 |
A2FE90/61W-VAL190J |
| R902060244 |
A2FE90/61W-VAL190JD |
| R902165119 |
A2FE90/61W-VAL191FJ |
| R902115953 |
A2FE90/61W-VAL191FJ-K |
| R902165274 |
A2FE90/61W-VAL191J |
| R902165434 |
A2FE90/61W-VAL191J |
| R902165117 |
A2FE90/61W-VAL191J |
| R902165118 |
A2FE90/61W-VAL191J |
| R902165116 |
A2FE90/61W-VAL191J |
| R902201593 |
A2FE90/61W-VAL191J |
| R902225680 |
A2FE90/61W-VAL191J |
| R902031796 |
A2FE90/61W-VAL191J-K |
| R902004485 |
A2FE90/61W-VAL192J |
| R902197626 |
A2FE90/61W-VAL192J |
| R902197850 |
A2FE90/61W-VAL192J |
| R909611016 |
A2FE90/61W-VAL192J-K |
| R902014263 |
A2FE90/61W-VAL192J-SK |
| R902060246 |
A2FE90/61W-VAL192JD-K |
| R902241848 |
A2FE90/61W-VBL100 |
| R902090316 |
A2FE90/61W-VBL100-S |
| R902161375 |
A2FE90/61W-VBL100F-S |
| R902092672 |
A2FE90/61W-VZL027-E |
| R902096759 |
A2FE90/61W-VZL027-E |
| R902203100 |
A2FE90/61W-VZL027-S |
| R902156026 |
A2FE90/61W-VZL027-S |
| R902204521 |
A2FE90/61W-VZL027-S |
| R909420230 |
A2FE90/61W-VZL100 |
| R902233621 |
A2FE90/61W-VZL100-S |
| R902160914 |
A2FE90/61W-VZL100-S |
| R902137898 |
A2FE90/61W-VZL100-S |
| R902137862 |
A2FE90/61W-VZL100-S |
| R902138495 |
A2FE90/61W-VZL100F-S |
| R902014185 |
A2FE90/61W-VZL106 |
| R902137513 |
A2FE90/61W-VZL106-S |
| R909441133 |
A2FE90/61W-VZL180 |
| R902067754 |
A2FE90/61W-VZL181-K |
| R909610313 |
A2FE90/61W-VZL181-K |
| R902068858 |
A2FE90/61W-VZL181-K |
| R902038748 |
A2FE90/61W-VZL181-K |
| R902040445 |
A2FE90/61W-VZL181-K |
| R902063502 |
A2FE90/61W-VZL181-K |
| R902121684 |
A2FE90/61W-VZL181-K |
| R902215350 |
A2FE90/61W-VZL188-S |
| R902065770 |
A2FE90/61W-VZL190J |
| R902065907 |
A2FE90/61W-VZL191J-K |
| R902065772 |
A2FE90/61W-VZL192J-S |
| R902197857 |
A2FE90/61W-VZL192J-S |
| R902165315 |
A2FE90/61W-VZL192J-S |
| R909418430 |
AA2FE90/61W-NAL600-S |
